How do climate models work?

Also published at Skeptical Science

This is a climate model:

T = [(1-α)S/(4εσ)]1/4

(T is temperature, α is the albedo, S is the incoming solar radiation, ε is the emissivity, and σ is the Stefan-Boltzmann constant)

An extremely simplified climate model, that is. It’s one line long, and is at the heart of every computer model of global warming. Using basic thermodynamics, it calculates the temperature of the Earth based on incoming sunlight and the reflectivity of the surface. The model is zero-dimensional, treating the Earth as a point mass at a fixed time. It doesn’t consider the greenhouse effect, ocean currents, nutrient cycles, volcanoes, or pollution.

If you fix these deficiencies, the model becomes more and more complex. You have to derive many variables from physical laws, and use empirical data to approximate certain values. You have to repeat the calculations over and over for different parts of the Earth. Eventually the model is too complex to solve using pencil, paper and a pocket calculator. It’s necessary to program the equations into a computer, and that’s what climate scientists have been doing ever since computers were invented.

A pixellated Earth

Today’s most sophisticated climate models are called GCMs, which stands for General Circulation Model or Global Climate Model, depending on who you talk to. On average, they are about 500 000 lines of computer code long, and mainly written in Fortran, a scientific programming language. Despite the huge jump in complexity, GCMs have much in common with the one-line climate model above: they’re just a lot of basic physics equations put together.

Computers are great for doing a lot of calculations very quickly, but they have a disadvantage: computers are discrete, while the real world is continuous. To understand the term “discrete”, think about a digital photo. It’s composed of a finite number of pixels, which you can see if you zoom in far enough. The existence of these indivisible pixels, with clear boundaries between them, makes digital photos discrete. But the real world doesn’t work this way. If you look at the subject of your photo with your own eyes, it’s not pixellated, no matter how close you get – even if you look at it through a microscope. The real world is continuous (unless you’re working at the quantum level!)

Similarly, the surface of the world isn’t actually split up into three-dimensional cells (you can think of them as cubes, even though they’re usually wedge-shaped) where every climate variable – temperature, pressure, precipitation, clouds – is exactly the same everywhere in that cell. Unfortunately, that’s how scientists have to represent the world in climate models, because that’s the only way computers work. The same strategy is used for the fourth dimension, time, with discrete “timesteps” in the model, indicating how often calculations are repeated.

It would be fine if the cells could be really tiny – like a high-resolution digital photo that looks continuous even though it’s discrete – but doing calculations on cells that small would take so much computer power that the model would run slower than real time. As it is, the cubes are on the order of 100 km wide in most GCMs, and timesteps are on the order of hours to minutes, depending on the calculation. That might seem huge, but it’s about as good as you can get on today’s supercomputers. Remember that doubling the resolution of the model won’t just double the running time – instead, the running time will increase by a factor of sixteen (one doubling for each dimension).

Despite the seemingly enormous computer power available to us today, GCMs have always been limited by it. In fact, early computers were developed, in large part, to facilitate atmospheric models for weather and climate prediction.

Cracking the code

A climate model is actually a collection of models – typically an atmosphere model, an ocean model, a land model, and a sea ice model. Some GCMs split up the sub-models (let’s call them components) a bit differently, but that’s the most common arrangement.

Each component represents a staggering amount of complex, specialized processes. Here are just a few examples from the Community Earth System Model, developed at the National Center for Atmospheric Research in Boulder, Colorado:

  • Atmosphere: sea salt suspended in the air, three-dimensional wind velocity, the wavelengths of incoming sunlight
  • Ocean: phytoplankton, the iron cycle, the movement of tides
  • Land: soil hydrology, forest fires, air conditioning in cities
  • Sea Ice: pollution trapped within the ice, melt ponds, the age of different parts of the ice

Each component is developed independently, and as a result, they are highly encapsulated (bundled separately in the source code). However, the real world is not encapsulated – the land and ocean and air are very interconnected. Some central code is necessary to tie everything together. This piece of code is called the coupler, and it has two main purposes:

  1. Pass data between the components. This can get complicated if the components don’t all use the same grid (system of splitting the Earth up into cells).
  2. Control the main loop, or “time stepping loop”, which tells the components to perform their calculations in a certain order, once per time step.

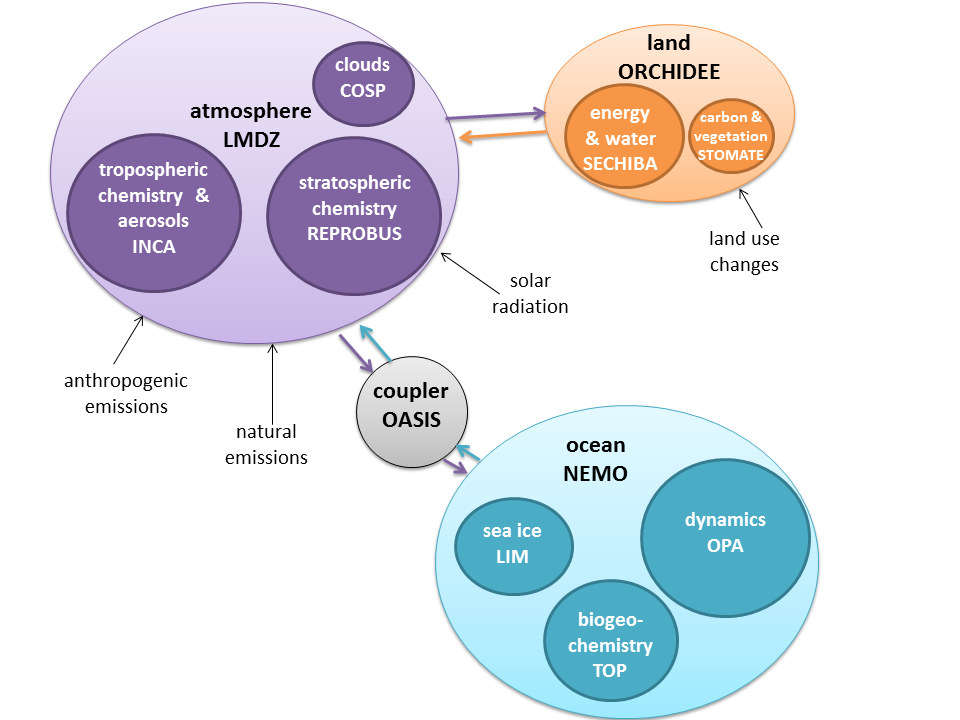

For example, take a look at the IPSL (Institut Pierre Simon Laplace) climate model architecture. In the diagram below, each bubble represents an encapsulated piece of code, and the number of lines in this code is roughly proportional to the bubble’s area. Arrows represent data transfer, and the colour of each arrow shows where the data originated:

We can see that IPSL’s major components are atmosphere, land, and ocean (which also contains sea ice). The atmosphere is the most complex model, and land is the least. While both the atmosphere and the ocean use the coupler for data transfer, the land model does not – it’s simpler just to connect it directly to the atmosphere, since it uses the same grid, and doesn’t have to share much data with any other component. Land-ocean interactions are limited to surface runoff and coastal erosion, which are passed through the atmosphere in this model.

You can see diagrams like this for seven different GCMs, as well as a comparison of their different approaches to software architecture, in this summary of my research.

Show time

When it’s time to run the model, you might expect that scientists initialize the components with data collected from the real world. Actually, it’s more convenient to “spin up” the model: start with a dark, stationary Earth, turn the Sun on, start the Earth spinning, and wait until the atmosphere and ocean settle down into equilibrium. The resulting data fits perfectly into the cells, and matches up really nicely with observations. It fits within the bounds of the real climate, and could easily pass for real weather.

Scientists feed input files into the model, which contain the values of certain parameters, particularly agents that can cause climate change. These include the concentration of greenhouse gases, the intensity of sunlight, the amount of deforestation, and volcanoes that should erupt during the simulation. It’s also possible to give the model a different map to change the arrangement of continents. Through these input files, it’s possible to recreate the climate from just about any period of the Earth’s lifespan: the Jurassic Period, the last Ice Age, the present day…and even what the future might look like, depending on what we do (or don’t do) about global warming.

The highest resolution GCMs, on the fastest supercomputers, can simulate about 1 year for every day of real time. If you’re willing to sacrifice some complexity and go down to a lower resolution, you can speed things up considerably, and simulate millennia of climate change in a reasonable amount of time. For this reason, it’s useful to have a hierarchy of climate models with varying degrees of complexity.

As the model runs, every cell outputs the values of different variables (such as atmospheric pressure, ocean salinity, or forest cover) into a file, once per time step. The model can average these variables based on space and time, and calculate changes in the data. When the model is finished running, visualization software converts the rows and columns of numbers into more digestible maps and graphs. For example, this model output shows temperature change over the next century, depending on how many greenhouse gases we emit:

Predicting the past

So how do we know the models are working? Should we trust the predictions they make for the future? It’s not reasonable to wait for a hundred years to see if the predictions come true, so scientists have come up with a different test: tell the models to predict the past. For example, give the model the observed conditions of the year 1900, run it forward to 2000, and see if the climate it recreates matches up with observations from the real world.

This 20th-century run is one of many standard tests to verify that a GCM can accurately mimic the real world. It’s also common to recreate the last ice age, and compare the output to data from ice cores. While GCMs can travel even further back in time – for example, to recreate the climate that dinosaurs experienced – proxy data is so sparse and uncertain that you can’t really test these simulations. In fact, much of the scientific knowledge about pre-Ice Age climates actually comes from models!

Climate models aren’t perfect, but they are doing remarkably well. They pass the tests of predicting the past, and go even further. For example, scientists don’t know what causes El Niño, a phenomenon in the Pacific Ocean that affects weather worldwide. There are some hypotheses on what oceanic conditions can lead to an El Niño event, but nobody knows what the actual trigger is. Consequently, there’s no way to program El Niños into a GCM. But they show up anyway – the models spontaneously generate their own El Niños, somehow using the basic principles of fluid dynamics to simulate a phenomenon that remains fundamentally mysterious to us.

In some areas, the models are having trouble. Certain wind currents are notoriously difficult to simulate, and calculating regional climates requires an unaffordably high resolution. Phenomena that scientists can’t yet quantify, like the processes by which glaciers melt, or the self-reinforcing cycles of thawing permafrost, are also poorly represented. However, not knowing everything about the climate doesn’t mean scientists know nothing. Incomplete knowledge does not imply nonexistent knowledge – you don’t need to understand calculus to be able to say with confidence that 9 x 3 = 27.

Also, history has shown us that when climate models make mistakes, they tend to be too stable, and underestimate the potential for abrupt changes. Take the Arctic sea ice: just a few years ago, GCMs were predicting it would completely melt around 2100. Now, the estimate has been revised to 2030, as the ice melts faster than anyone anticipated:

Answering the big questions

At the end of the day, GCMs are the best prediction tools we have. If they all agree on an outcome, it would be silly to bet against them. However, the big questions, like “Is human activity warming the planet?”, don’t even require a model. The only things you need to answer those questions are a few fundamental physics and chemistry equations that we’ve known for over a century.

You could take climate models right out of the picture, and the answer wouldn’t change. Scientists would still be telling us that the Earth is warming, humans are causing it, and the consequences will likely be severe – unless we take action to stop it.

MPI Problem?

Now that my poster is finished, I am taking one last crack at getting CESM to run. Last time I wrote, I mentioned that the model execution was failing without giving any error messages (except the occasional “Segmentation fault”).

Michael Tobis thought that the problem had to do with mpiexec, so today I tried something new. I uninstalled mpich2 and replaced it with openmpi which I had built manually (as opposed to using apt-get). Now, when the model fails, the ccsm.log file actually says something:

mpiexec noticed that process rank 0 with PID 1846 on node computer name exited on signal 11 (Segmentation fault).
15 total processes killed (some possibly by mpiexec during cleanup)

Perhaps the problem is still with MPI. It seems unlikely that the segfault is due to a problem with the code itself (eg an undeclared variable), seeing as this version has been tested and used by NCAR. Maybe gcc is the issue, and I should play around with some compiler flags? Any suggestions would be welcome.

Wrapping Up

My summer job as a research student of Steve Easterbrook is nearing an end. All of a sudden, I only have a few days left, and the weather is (thankfully) cooling down as autumn approaches. It feels like just a few weeks ago that this summer was beginning!

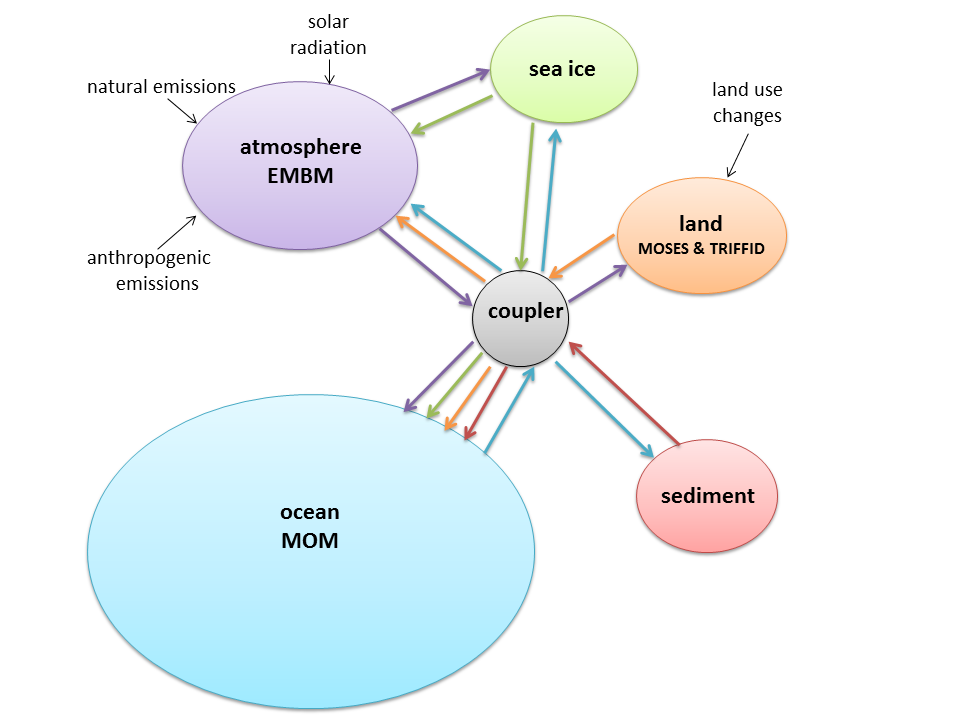

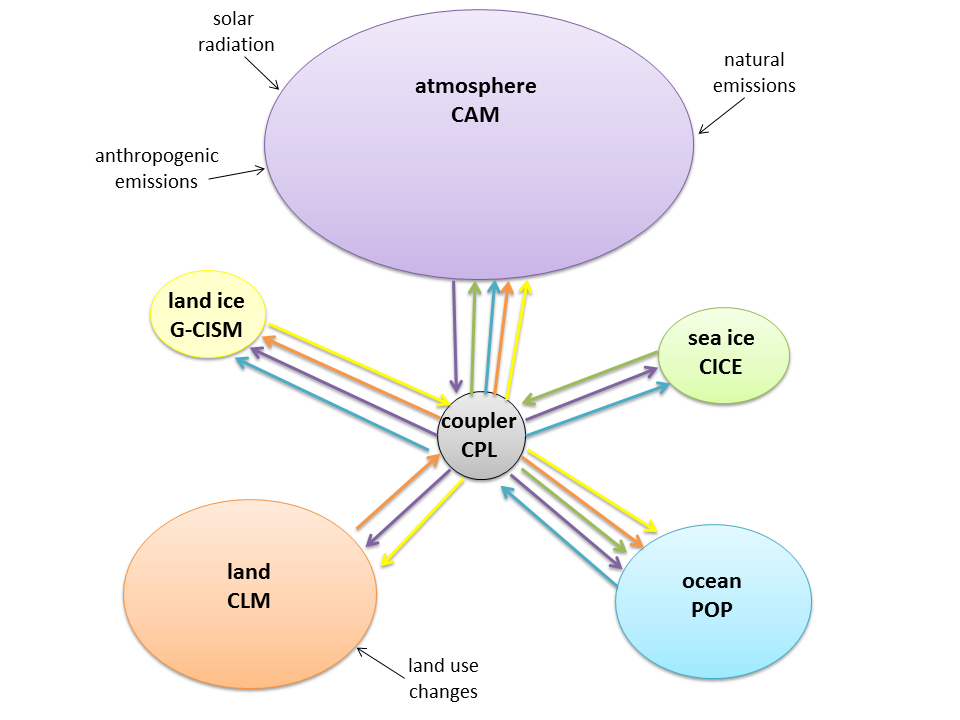

Over the past three months, I examined seven different GCMs from Canada, the United States, and Europe. Based on the source code, documentation, and correspondence with scientists, I uncovered the underlying architecture of each model. This was represented in a set of diagrams. You can view full-sized versions here:

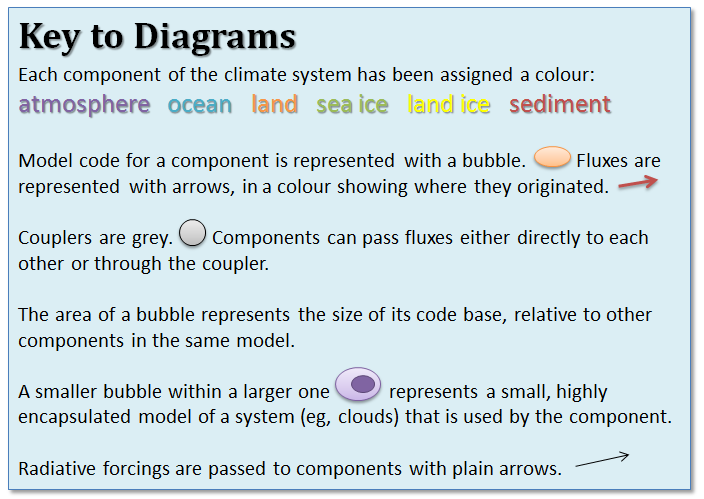

The component bubbles are to scale (based on the size of the code base) within each model, but not between models. The size and complexity of each GCM varies greatly, as can be seen below. UVic is by far the least complex model – it is arguably closer to an EMIC than a full GCM.

I came across many insights while comparing GCM architectures, regarding how modular components are, how extensively the coupler is used, and how complexity is distributed between components. I wrote some of these observations up into the poster I presented last week to the computer science department. My references can be seen here.

A big thanks to the scientists who answered questions about their work developing GCMs: Gavin Schmidt (Model E); Michael Eby (UVic); Tim Johns (HadGEM3); Arnaud Caubel, Marie-Alice Foujols, and Anne Cozic (IPSL); and Gary Strand (CESM). Additionally, Michael Eby from the University of Victoria was instrumental in improving the diagram design.

Although the summer is nearly over, our research certainly isn’t. I have started writing a more in-depth paper that Steve and I plan to develop during the year. We are also hoping to present our work at the upcoming AGU Fall Meeting, if our abstract gets accepted. Beyond this project, we are also looking at a potential experiment to run on CESM.

I guess I am sort of a scientist now. The line between “student” and “scientist” is blurry. I am taking classes, but also writing papers. Where does one end and the other begin? Regardless of where I am on the spectrum, I think I’m moving in the right direction. If this is what Doing Science means – investigating whatever little path interests me – I’m certainly enjoying it.

Progress?

I have made slight headway regarding my installation of CESM. It still isn’t running, but now it’s not running for a different reason than previously! Progress!

It appears that, at some point while porting, I mangled the scripts/ccsm_utils/Machines/mkbatch.kate file for my machine such that the actual call to launch the model wasn’t getting copied from mkbatch.kate to test.kate.run. A bit of trial and error fixed that problem.

I finally got Torque working. The only reason that jobs were getting stuck in the queue was that I didn’t start the pbs_sched daemon! It turns out that qsub isn’t related to the problems I was having, and isn’t necessary to run the model, but it’s nice to have it working just in case I need it in the future.

So, with the relevant call in test.kate.run as

mpiexec -n 16 ./ccsm.exe >&! ccsm.log.$LID

the command line output is

Wed July 6 11:02:33 EDT 2011 -- CSM EXECUTION BEGINS HERE
Wed July 6 11:02:34 EDT 2011 -- CSM EXECUTION HAS FINISHED
ls: No match.
Model did not complete - no cpl.log file present - exiting

The only log file created is ccsm.log, and it is completely empty.

I have MPICH2 installed, the command mpiexec seems to work fine, and I have mpd running. Regardless, I tried taking out mpiexec and calling the executable directly in test.kate.run:

./ccsm.exe >&! ccsm.log.$LID

The command line output becomes

Wed July 6 11:02:33 EDT 2011 -- CSM EXECUTION BEGINS HERE
Segmentation fault.
Wed July 6 11:02:34 EDT 2011 -- CSM EXECUTION HAS FINISHED
ls: No match.
Model did not complete - no cpl.log file present - exiting

Again, ccsm.log is empty, and there seems to be no trace of why the model is failing to launch beyond Segmentation fault. The CESM guide recommends setting the stack size to unlimited, which I did to no avail. Submitting test.kate.run using qsub produces the same messages, but in the output and error files, rather than the terminal.

Thoughts?

Modularity

I’ve now taken a look at the code and structure of four different climate models: Model E, CESM, UVic ESCM, and the Met Office Unified Model (which contains all the Hadley models). I’m noticing all sorts of similarities and differences, many of which I didn’t expect.

For example, I didn’t anticipate any overlap in climate model components. I thought that every modelling group would build their own ocean, their own atmosphere, and so on, from scratch. In fact, what I think of as a “model” – a self-contained, independent piece of software – applies to components more accurately than it does to an Earth system model. The latter is more accurately described as a collection of models, each representing one piece of the climate system. Each modelling group has a different collection of models, but not every one of these models is unique to their lab.

Ocean models are a particularly good example. The Modular Ocean Model (MOM) is built by GFDL, but it’s also used in NASA’s Model E and the UVic Earth System Climate Model. Another popular ocean model is the Nucleus for European Modelling of the Ocean (NEMO, what a great acronym) which is used by the newer Hadley climate models, as well as the IPSL model from France (which is sitting on my desktop as my next project!)

Aside: Speaking of clever acronyms, I don’t know what the folks at NCAR were thinking when they created the Single Column Atmosphere Model. Really, how did they not see their mistake? And why haven’t Marc Morano et al latched onto this acronym and spread it all over the web by now?

In most cases, an Earth system model has a unique architecture to fit all the component models together – a different coupling process. However, with the rise of standard interfaces like the Earth System Modeling Framework, even couplers can be reused between modelling groups. For example, the Hadley Centre and IPSL both use the OASIS coupler.

There are benefits and drawbacks to the rising overlap and “modularity” of Earth system models. One could argue that it makes the models less independent. If they all agree closely, how much of that agreement is due to their physical grounding in reality, and how much is due to the fact that they all use a lot of the same code? However, modularity is clearly a more efficient process for model development. It allows larger communities of scientists from each sub-discipline of Earth system modelling to form, and – in the case of MOM and NEMO – make two or three really good ocean models, instead of a dozen mediocre ones. Concentrating our effort, and reducing unnecessary duplication of code, makes modularity an attractive strategy, if an imperfect one.

The least modular of all the Earth system models I’ve looked at is Model E. The documentation mentions different components for the atmosphere, sea ice, and so on, but these components aren’t separated into subdirectories, and the lines between them are blurry. Nearly all the fortran files sit in the same directory, “model”,  and some of them deal with two or more components. For example, how would you categorize a file that calculates surface-atmosphere fluxes? Even where Model E uses code from other institutions, such as the MOM ocean model, it’s usually adapted and integrated into their own files, rather than in a separate directory.

The most modular Earth system model is probably the Met Office Unified Model. They don’t appear to have adapted NEMO, CICE (the sea ice model from NCAR) and OASIS at all – in fact, they’re not present in the code repository they gave us. I was a bit confused when I discovered that their “ocean” directory, left over from the years when they wrote their own ocean code, was now completely empty! Encapsulation to the point where a component model can be stored completely externally to the structural code was unexpected.

An interesting example of the challenges of modularity appears in sea ice. Do you create a separate, independent sea ice component, like CESM did? Do you consider it part of the ocean, like NEMO? Or do you lump in lake ice along with sea ice and subsequently allow the component to float between the surface and the ocean, like Model E?

The real world isn’t modular. There are no clear boundaries between components on the physical Earth. But then, there’s only one physical Earth, whereas there are many virtual Earths in the form of climate modelling, and limited resources for developing the code in each component. In this spectrum of interconnection and encapsulation, is one end or the other our best bet? Or is there a healthy balance somewhere in the middle?

Working Away

The shape of my summer research is slowly becoming clearer. Basically, I’ll be writing a document comparing the architecture of different climate models. This, of course, involves getting access to the source code. Building on Steve’s list, here are my experiences:

NCAR, Community Earth System Model (CESM): Password-protected, but you can get access within an hour. After a quick registration, you’ll receive an automated email with a username and password. This login information gives you access to their Subversion repository. Registration links and further information are available here, under “Acquiring the CESM1.0 Release Code”.

University of Victoria, Earth System Climate Model (ESCM): Links to the source code can be found on this page, but they’re password-protected. You can request an account by sending an email – follow the link for more information.

Geophysical Fluid Dynamics Laboratory (GFDL), CM 2.1: Slightly more complicated. Create an account for their Gforge repository, which is an automated process. Then, request access to the MOM4P1 project – apparently CM 2.1 is included within that. Apparently, the server grants you request to a project, so it sounds automatic – but the only emails I’ve received from the server regard some kind of GFDL mailing list, and don’t mention the project request. I will wait and see.
Update (July 20): It looks like I got access to the project right after I requested it – I just never received an email!

Max Planck Institute (MPI), COSMOS: Code access involves signing a licence agreement, faxing it to Germany, and waiting for it to be approved and signed by MPI. The agreement is not very restrictive, though – it deals mainly with version control, documenting changes to the code, etc.

UK Met Office, Hadley Centre Coupled Model version 3 (HadCM3): Our lab already has a copy of the code for HadCM3, so I’m not really sure what the process is to get access, but apparently it involved a lot of government paperwork.

Institut Pierre Simon Laplace (IPSL), CM5: This one tripped me up for a while, largely because the user guide is difficult to find, and written in French. Google Translate helped me out there, but it also attempted to “translate” their command line samples! Make sure that you have ksh installed, too – it’s quick to fix, but I didn’t realize it right away. Some of the components for IPSLCM5 are open access, but others are password-protected. Follow the user guide’s instructions for who to email to request access.

Model E: This was the easiest of all. From the GISS website, you can access all the source code without any registration. They offer a frozen AR4 version, as well as nightly snapshots of the work-in-process for AR5 (frozen AR5 version soon to come). There is also a wealth of documentation on this site, such as an installation guide and a description of the model.

I’ve taken a look at the structural code for Model E, which is mostly contained in the file MODELE.f. The code is very clear and well commented, and the online documentation helped me out too. After drawing a lot of complicated diagrams with arrows and lists, I feel that I have a decent understanding of the Model E architecture.

Reading code can become monotonous, though, and every now and then I feel like a little computer trouble to keep things interesting. For that reason, I’m continuing to chip away at building and running two models, Model E and CESM. See my previous post for how this process started.

<TECHNICAL COMPUTER STUFF> (Feel free to skip ahead…)

I was still having trouble viewing the Model E output (only one file worked on Panoply, the rest created an empty map) so I emailed some of the lab’s contacts at NASA. They suggested I install CDAT, a process which nearly broke Ubuntu (haven’t we all been there?) Basically, because it’s an older program, it thought the newest version of Python was 2.5 – which it subsequently installed and set as the default in /usr/bin. Since I had Python 2.6 installed, and the versions are apparently very not-backwards-compatible, every program that depended on Python (i.e. almost everything on Ubuntu) stopped working. Our IT contact managed to set 2.6 back as the default, but I’m not about to try my hand at CDAT again…

I have moved forward very slightly on CESM. I’ve managed to build the model, but upon calling test.<machine name>.run, I get rather an odd error:

./Tools/ccsm_getenv: line 9: syntax error near unexpected token '('
./Tools/ccsm_getenv: line 9: 'foreach i (env_case.xml env_run.xml env_conf.xml env_build.xml env_mach_pes.xml)'

Now, I’m pretty new at shell scripting, but I can’t see the syntax error there – and wouldn’t syntax errors appear at compile-time, rather than run-time?

A post by Michael Tobis, who had a similar error, suggested that the issue had to do with qsub. Unfortunately, that meant I had to actually use qsub – I had previously given up trying to configure Torque to run on a single machine rather than many. I gave the installation another go, and now I can get scripts into the queue, but they never start running – their status stays as “Q” even if I leave the computer alone for an hour. Since the machine has a dual-core processor, I can’t see why it couldn’t run both a server and a node at once, but it doesn’t seem to be working for me.

</TECHNICAL COMPUTER STUFF>

Before I started this job, climate models seemed analogous to Antarctica – a distant, mysterious, complex system that I wanted to visit, but didn’t know how to get to. In fact, they’re far more accessible than Antarctica. More on the scale of a complicated bus trip across town, perhaps?

They are not perfect pieces of software, and they’re not very user friendly. However, all the struggles of installation pay off when you finally get some output, and open it up, and see realistic data representing the very same planet you’re sitting on! Even just reading the code for different models shows you many different ways to look at the same system – for example, is sea ice a realm of its own, or is it a subset of the ocean? In the real world the lines are blurry, but computation requires us to make clear divisions.

The code can be unintelligible (lndmaxjovrdmdni) or familiar (“The Stefan-Boltzmann constant! Finally I recognize something!”) or even entertaining (a seemingly random identification string, dozens of characters long, followed by the comment if you edit this you will get what you deserve). When you get tied up in the code, though, it’s easy to miss the bigger picture: the incredible fact that we can use the sterile, binary practice of computation to represent a system as messy and mysterious as the whole planet. Isn’t that something worth sitting and marveling over?

Climate Models on Ubuntu

Part 1: Model E

I felt a bit over my head attempting to port CESM, so I asked a grad student, who had done his Master’s on climate modelling, for help. He looked at the documentation, scratched his head, and suggested I start with NASA’s Model E instead, because it was easier to install. And was it ever! We had it up and running within an hour or so. It was probably so much easier because Model E comes with gfortran support, while CESM only has scripts written for commercial compilers like Intel or PGI.

Strangely, when using Model E, no matter what dates the rundeck sets for the simulation start and end, the subsequently generated I file always has December 1, 1949 as the start date and December 2, 1949 as the end date. We edited the I files after they were created, which seemed to fix the problem, but it was still kind of weird.

I set up Model E to run a ten-year simulation with fixed atmospheric concentration (really, I just picked a rundeck at random) over the weekend. It took it about 3 days to complete, so just over 7 hours per year of simulation time…not bad for a 32-bit desktop!

However, I’m having some weird problems with the output – after configuring the model to output files in NetCDF format and opening them in Panoply, only the file with all the sea ice variables worked. All the others either gave a blank map (array full of N/A’s) or threw errors when Panoply tried to read them. Perhaps the model isn’t enjoying having the I file edited?

Part 2: CESM

After exploring Model E, I felt like trying my hand at CESM again. Steve managed to port it onto his Macbook last year, and took detailed notes. Editing the scripts didn’t seem so ominous this time!

The CESM code can be downloaded using Subversion (instructions here) after a quick registration. Using the Ubuntu Software Center, I downloaded some necessary packages: libnetcdf-dev, mpich2, and torque-scheduler. I already had gfortran, which is sort of essential.

I used the Porting via user defined machine files method to configure the model for my machine, using the Hadley scripts as a starting point. Variables for the config_machines.xml are explained in Appendix D through H of the user’s guide (links in chapter 7). Mostly, you’re just pointing to folders where you want to store data and files. Here are a few exceptions:

  • DOUT_L_HTAR: I stuck with "TRUE", as that was the default.
  • CCSM_CPRNC: this tool already exists in the CESM source code, in /models/atm/cam/tools/cprnc.
  • BATCHQUERY and BATCHSUBMIT: the Hadley entry had “qstat” and “qsub”, respectively, so I Googled these terms to find out which batch submission software they referred to (Torque, which is freely available in the torque-scheduler package) and downloaded it so I could keep the commands the same!
  • GMAKE_J: this determines how many processors to commit to a certain task, and I wasn’t sure how many this machine had, so I just put “1”.
  • MAX_TASKS_PER_NODE: I chose "8", which the user’s guide had mentioned as an example.
  • MPISERIAL_SUPPORT: the default is “FALSE”.

The only file that I really needed to edit was Macros.<machine name>. The env_machopts.<machine name> file ended up being empty for me. I spent a while confused by the modules declarations, which turned out to refer to the Environment Modules software. Once I realized that, for this software to be helpful, I would have to write five or six modulefiles in a language I didn’t know, I decided that it probably wasn’t worth the effort, and took these declarations out. I left mkbatch.<machine name> alone, except for the first line which sets the machine, and then turned my attention to Macros.

“Getting this to work will be an iterative process”, the user’s guide says, and it certainly was (and still is). It’s never a good sign when the installation guide reminds you to be patient! Here is the sequence of each iteration:

  1. Edit the Macros file as best I can.
  2. Open up the terminal, cd to cesm1_0/scripts, and create a new case as follows: ./create_newcase -case test -res f19_g16 -compset X -mach <machine name>
  3. If this works, cd to test, and run configure: ./configure -case
  4. If all is well, try to build the case: ./test.<machine name>.build
  5. See where it fails and read the build log file it refers to for ideas as to what went wrong. Search on Google for what certain errors mean. Do some other work for a while, to let the ideas simmer.
  6. Set up for the next case: ./test.<machine name>.clean_build , cd .., and rm -rf test. This clears out old files so you can safely build a new case with the same name.
  7. See step 1.

I wasn’t really sure what the program paths were, as I couldn’t find a nicely contained folder for each one (like Windows has in “Program Files”), but I soon stumbled upon a nice little trick: look up the package on Ubuntu Package Manager, and click on “list of files” under the Download section. That should tell you what path the program used as its root.

I also discovered that setting FC and CC to gfortran and gcc, respectively, in the Macros file will throw errors. Instead, leave the variables as mpif90 and mpicc, which are linked to the GNU compilers. For example, when I type mpif90 in the terminal, the result is gfortran: no input files, just as if I had typed gfortran. For some reason, though, the errors go away.

As soon as I made it past building the mct and pio libraries, the build logs for each component (eg atm, ice) started saying gmake: command not found. This is one of the pitfalls of Ubuntu: it uses the command make for the same program that basically every other Unix-based OS calls gmake. So I needed to find and edit all the scripts that called gmake, or generated other scripts that called it, and so on. “There must be a way to automate this,” I thought, and from this article I found out how. In the terminal, cd to the CESM source code folder, and type the following:

grep -lr -e 'gmake' * | xargs sed -i 's/gmake/make/g'

You should only have to do this once. It’s case sensitive, so it will leave the xml variable GMAKE_J alone.

Then I turned my attention to compiler flags, which Steve chronicled quite well in his notes (see link above). I made most of the same changes that he did, except I didn’t need to change -DLINUX to -DDarwin. However, I needed some more compiler flags still. In the terminal, man gfortran brings up a list of all the options for gfortran, which was helpful.

The ccsm build log had hundreds of undefined reference errors as soon as it started to compile fortran. The way I understand it, many of the fortran files reference each other, but gfortran likes to append underscores to user-defined variables, and then it can’t find the file the variable is referencing! You can suppress this using the flag -fno-underscoring.

Now I am stuck on a new error. It looks like the ccsm script is almost reaching the end, as it’s using ld, the gcc linking mechanism, to tie all the files together. Then the build log says:

/usr/bin/ld: seq_domain_mct.o(.debug_info+0x1c32): unresolvable R_386_32 relocation against symbol 'mpi_fortran_argv_null'
/usr/bin/ld: final link failed: Nonrepresentable section on output
collect2: ld returned 1 exit status

I’m having trouble finding articles on the internet about similar errors, and the gcc and ld manpages are so long that trying every compiler flag isn’t really an option. Any ideas?

Update: Fixed it! In scripts/ccsm_utils/Build/Makefile, I changed LD := $(F90) to LD := gcc -shared. The build was finally successful! Now off to try and run it…

The good thing is that, since I re-started this project a few days ago, I haven’t spent very long stuck on any one error. I’m constantly having problems, but I move through them pretty quickly! In the meantime, I’m learning a lot about the model and how it fits everything together during installation. I’ve also come a long way with Linux programming in general. Considering that when I first installed Ubuntu a few months ago, and sheepishly called my friend to ask where to find the command line, I’m quite proud of my progress!

I hope this article will help future Ubuntu users install CESM, as it seems to have a few quirks that even Mac OS X doesn’t experience (eg make vs gmake). For the rest of you, apologies if I have bored you to tears!
